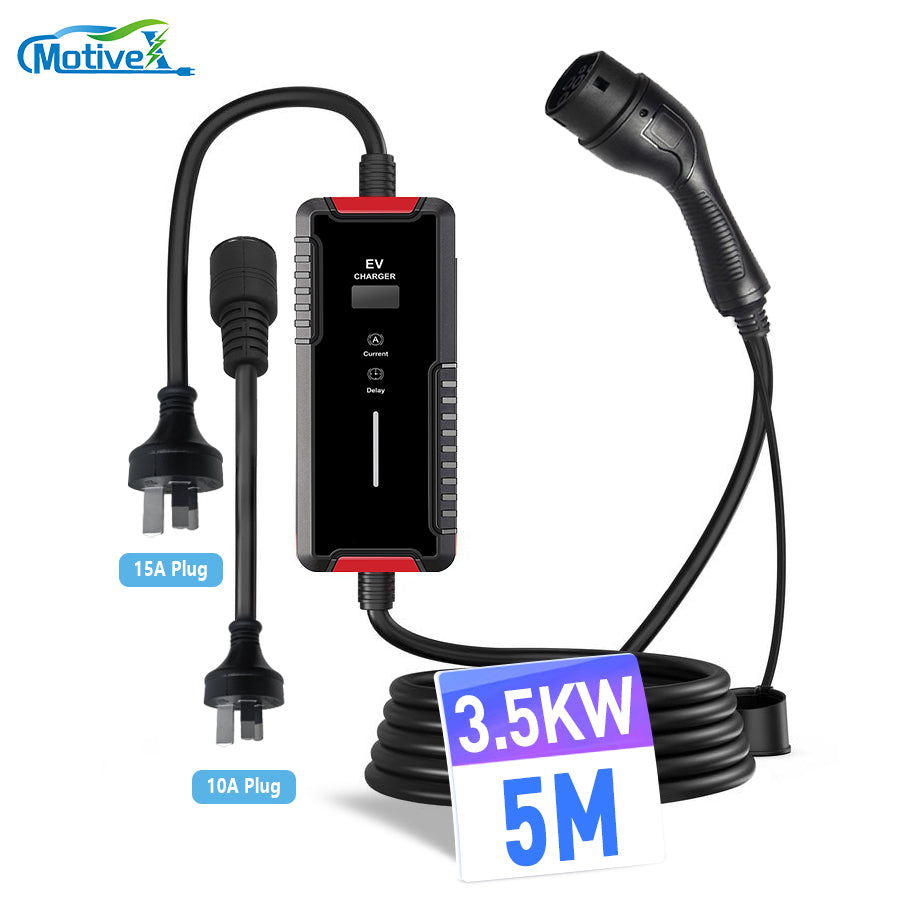

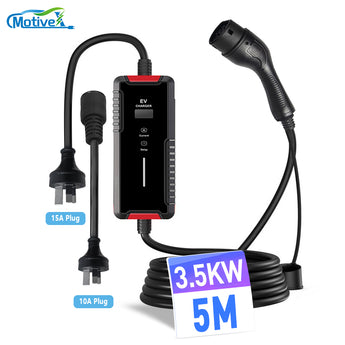

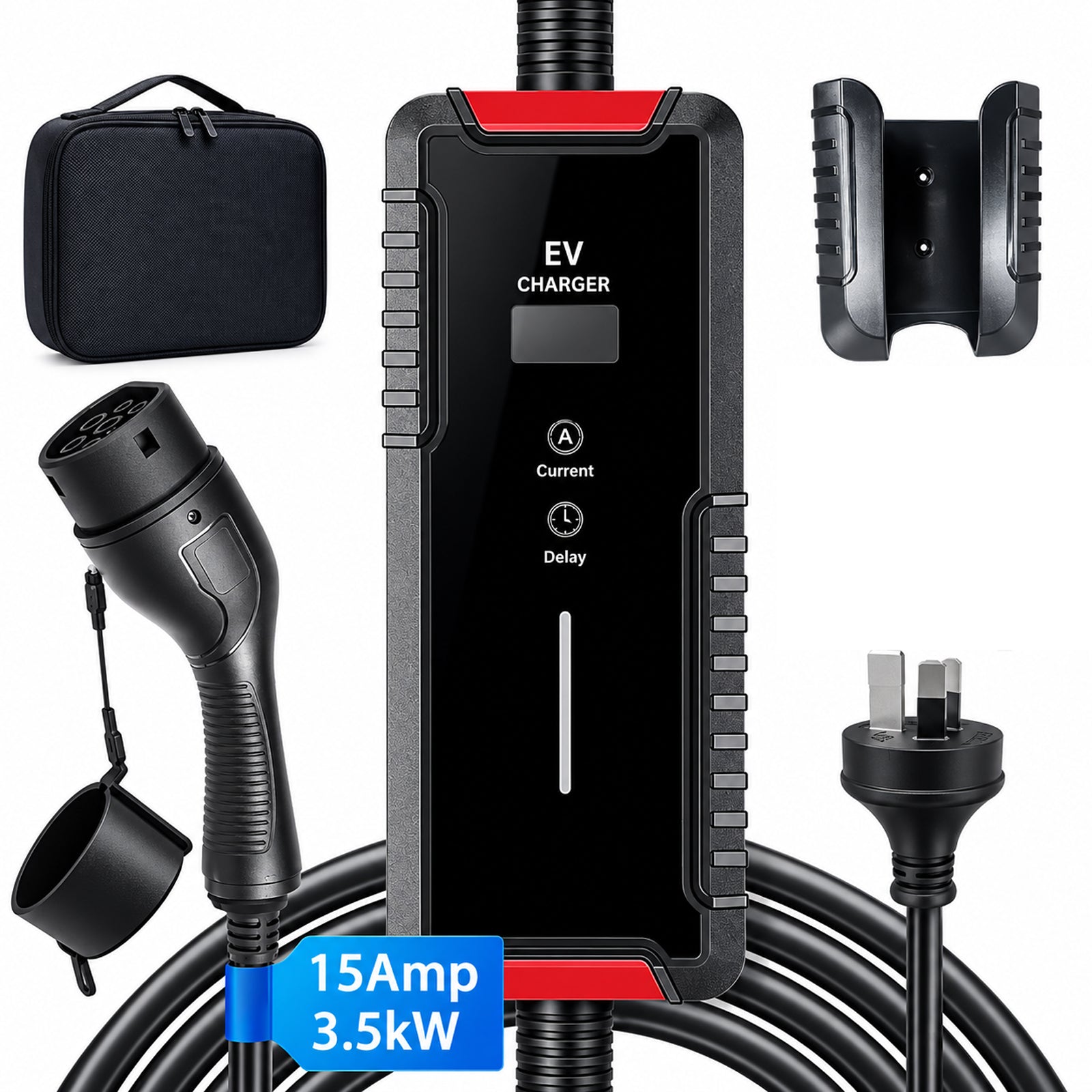

Australia B1 Smart Type2 Homeuse EV Chargers Adjustable 15A 5M(16.5ft)/10M(32.8ft)

$263.50 AUD
Shipping calculated at checkout.
Model: Smart Premium Portable (15A Plug) — 5M(16.5ft)
  • Incl. GST
  • 28 $AUD (Standard Shipping)
Model Number EV-B1-16AC-RD5/10M(W)
Condition 100% Brand New
Brand Name MotiveX
Place Of Origin Australia

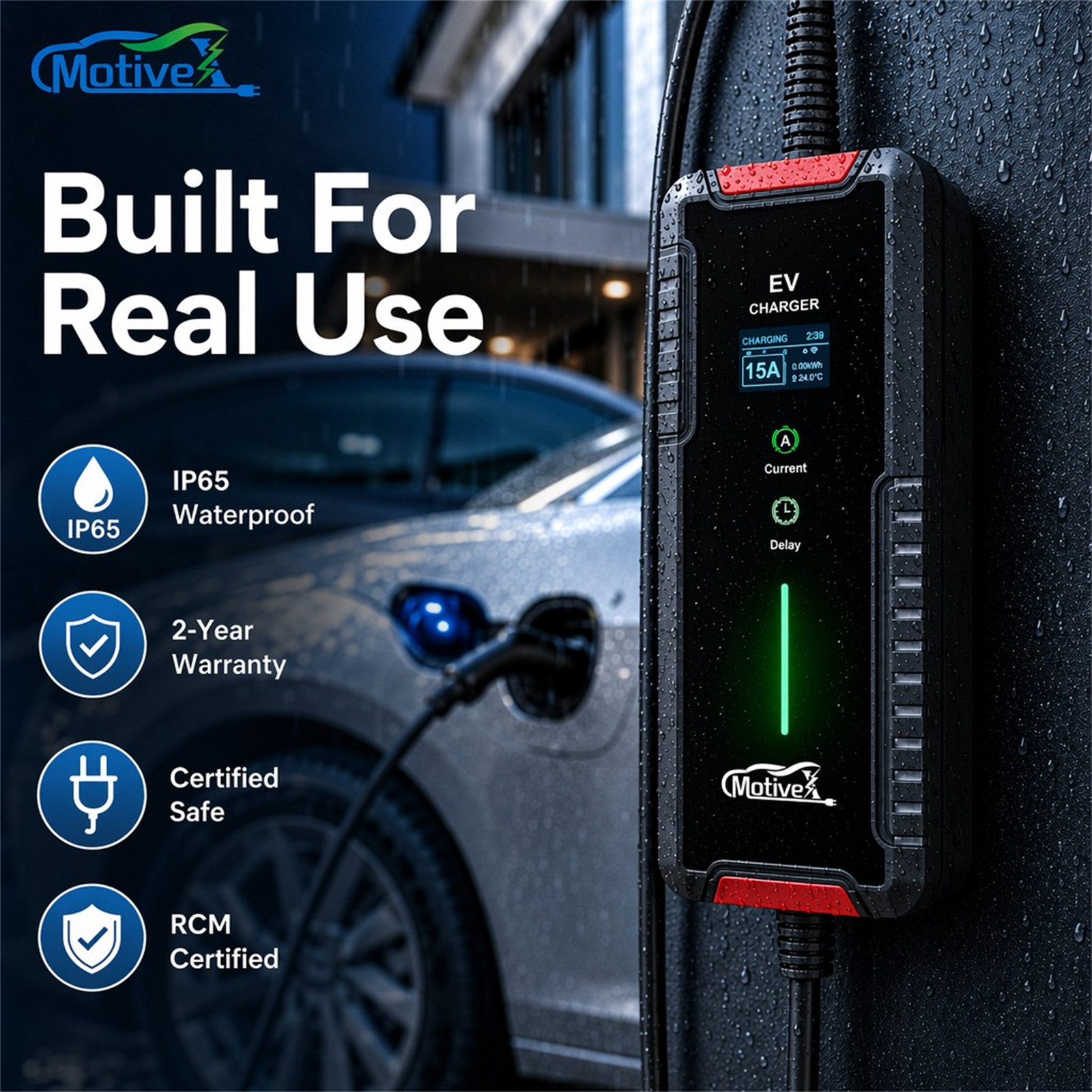

Protection Rank IP65/66
Connector Type IEC 62196 Type2
Amperage Adjustable 6A/8A/10A/13A/15A
Output Power 3.5 KW
Cable Length 5M(16.5ft) & 10M (32.8ft)
Operating Voltage AC 200-250V

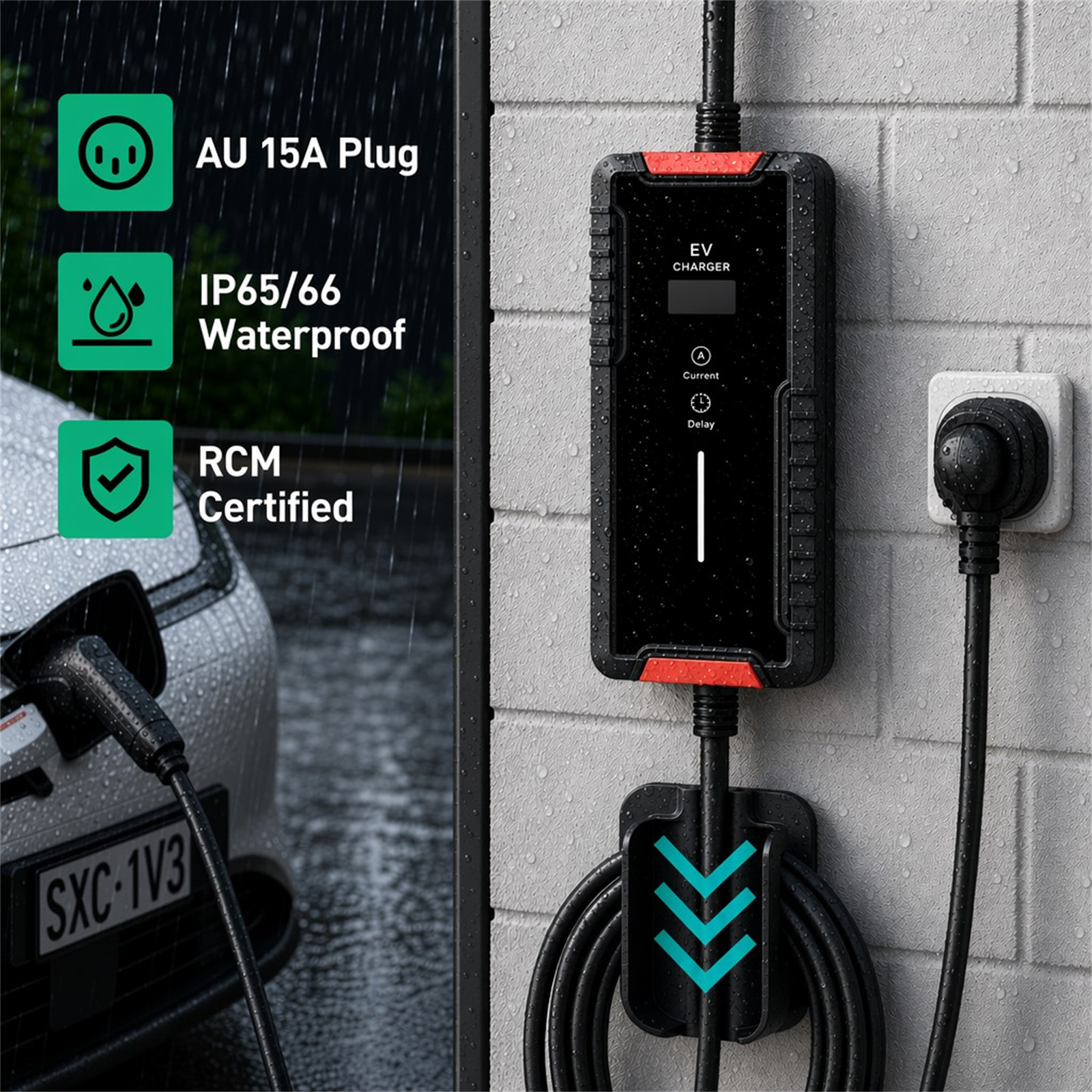

AC Input Plug  Original 15A AU Plug
LCD display 0.96 Inches LCD Screen

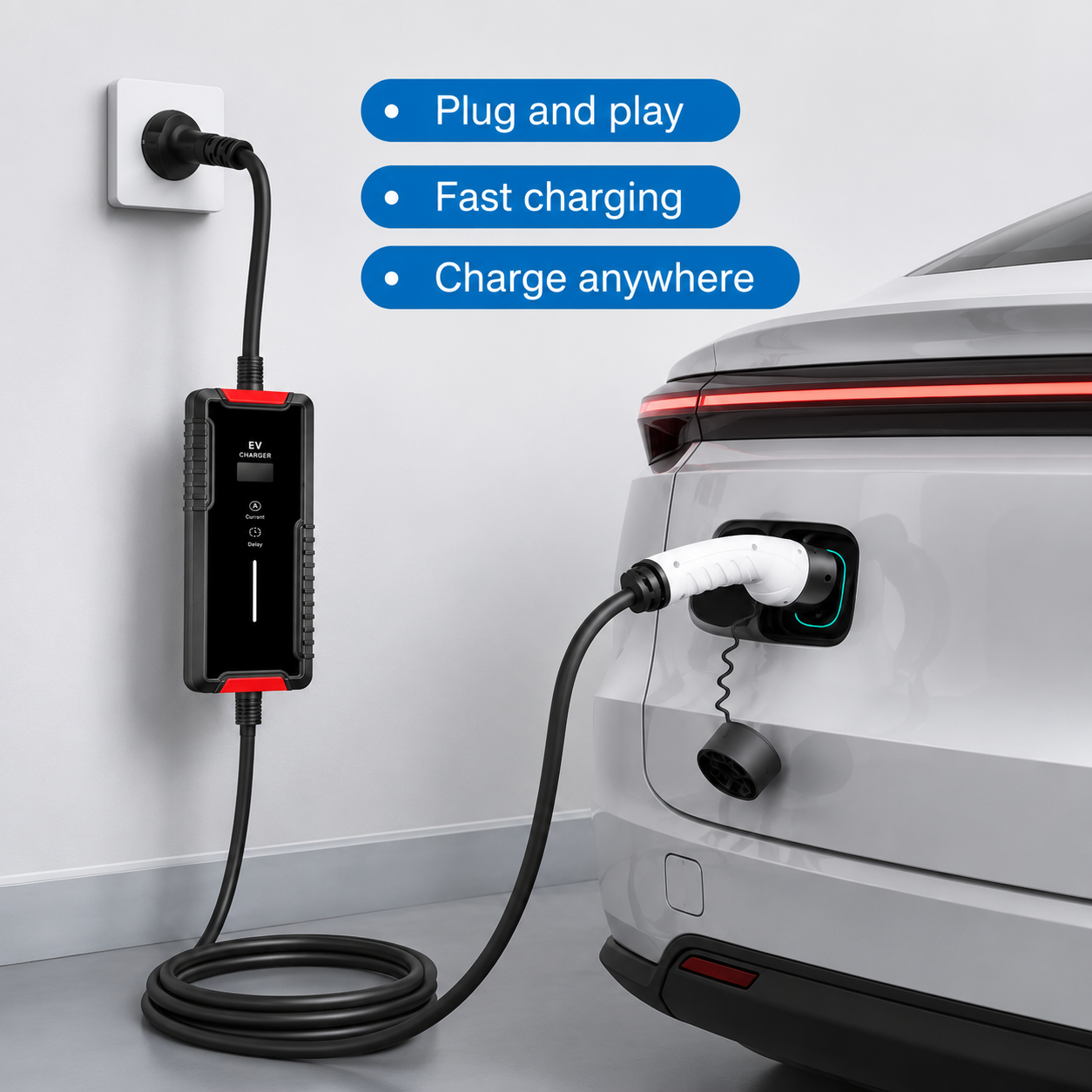

Charging Method Plug & Play
Communication Method WiFi & Bluetooth
Appearance Size L220*W100*H60mm
Operating Temperature -35℃ to +50℃
Operating Humidity 5% ~ 95%HR
Insulation Resistance ≥100MΩ
Packages Each in PE bag, then in shipping box. Protect the transportation and storage of products.
Certificate CE, UKCA, ROHS, ISO, TUV, CB, FCC
Warranty 2 Years
Leakage Protection CCID20, Leakage, The Relay Was Off
Ground Protection The Ground Wire Is Not Detected Or The Ground Wire Is Disconnected During Charging.
The Relay Is Disconnected.
Over Temperature Protection When the Temperature of The Main Board Reached 185℉, The Power was Reduced to
50%, and It was Turned Off After 194℉

Model
Product information
  • This charger allows to charge your EVs and PHEVs with Type 2 charging connector easily and conveniently.
  • 15A strong current with 3.3KW(max) high power allows quick and efficient charging, plug and play.
  • It is available to provide corresponding current to match with different EVs and PHEVs.
  • Support intelligent security lock function and smart temperature control.
  • The control box provides an 2.4" LCD screen & Indicator Light  to show parameters (R/G/B) , allowing you to understand the working status of the charger.
  • Our products have a matching APP—Smart Life APP, which can schedule charging, check charging status, disconnect power, etc.
  • Made of highly flame-retardant and high strength material, secure and durable.
  • RCD Protection:
  1. Type A(30mA AC)
  2. IP65, Weather proof;
  3. Leakage current protection;
  4. Impact resistance;
  5. Over current protection;
  6. Ground protection;
  7. Surge protection;
  8. O/U voltage protection;
  9. O/U frequency protection;
  10. Over temp protection.

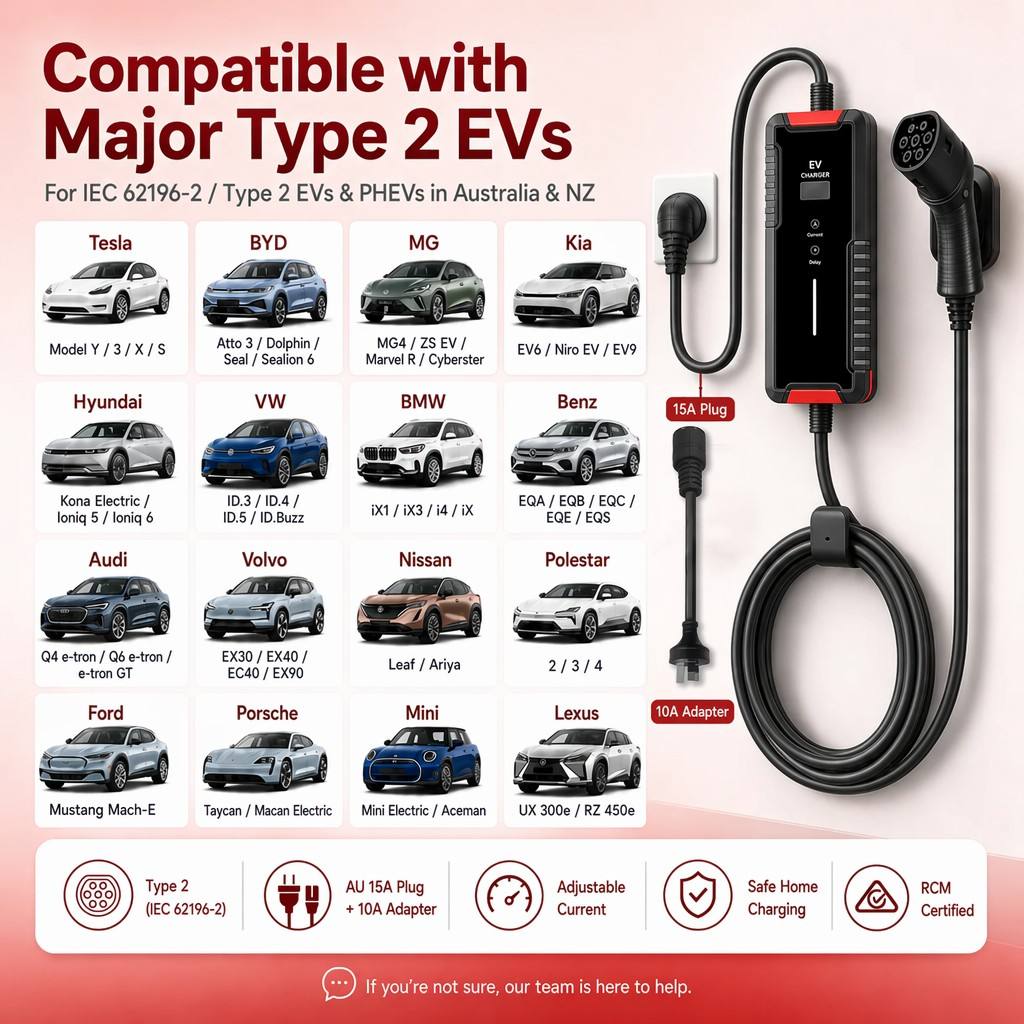

Compatible Models and Years:

       Universal for all Electric Vehicles (EVs) and Plug In Hybrid Electric Vehicles (PHEVs) that use a Type 2 charging connector.
  •  If you have any questions or concerns, please do not hesitate to contact us.
  • Please don't place the charging cable near high temperature object when charging.
  • Don't submerge the EV charging cable in water.
  • Don't step on, fold or knot the cable.
  • Don't drop the EV charging box or place a heavy object on it.
  • Don't place the charging cable near high temperature object when charging.
  • Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
  • Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that the power distribution is done by the professionals.
  • Don't put fingers into the charging connector when the power plug is still connecting to the power.
  • Don't use this EV charging box when the cable is damaged.
  • The EV charging box is only for EV charging using.
  • Don't use this device with other brand's extension cord or adapter.

Note:

       If you have any questions or concerns, please do not hesitate to contact us.
Please don't place the charging cable near high temperature object when charging.

After confirming the order, We will ship items within 48 hours, the estimated arrival time is within 7-12 days.

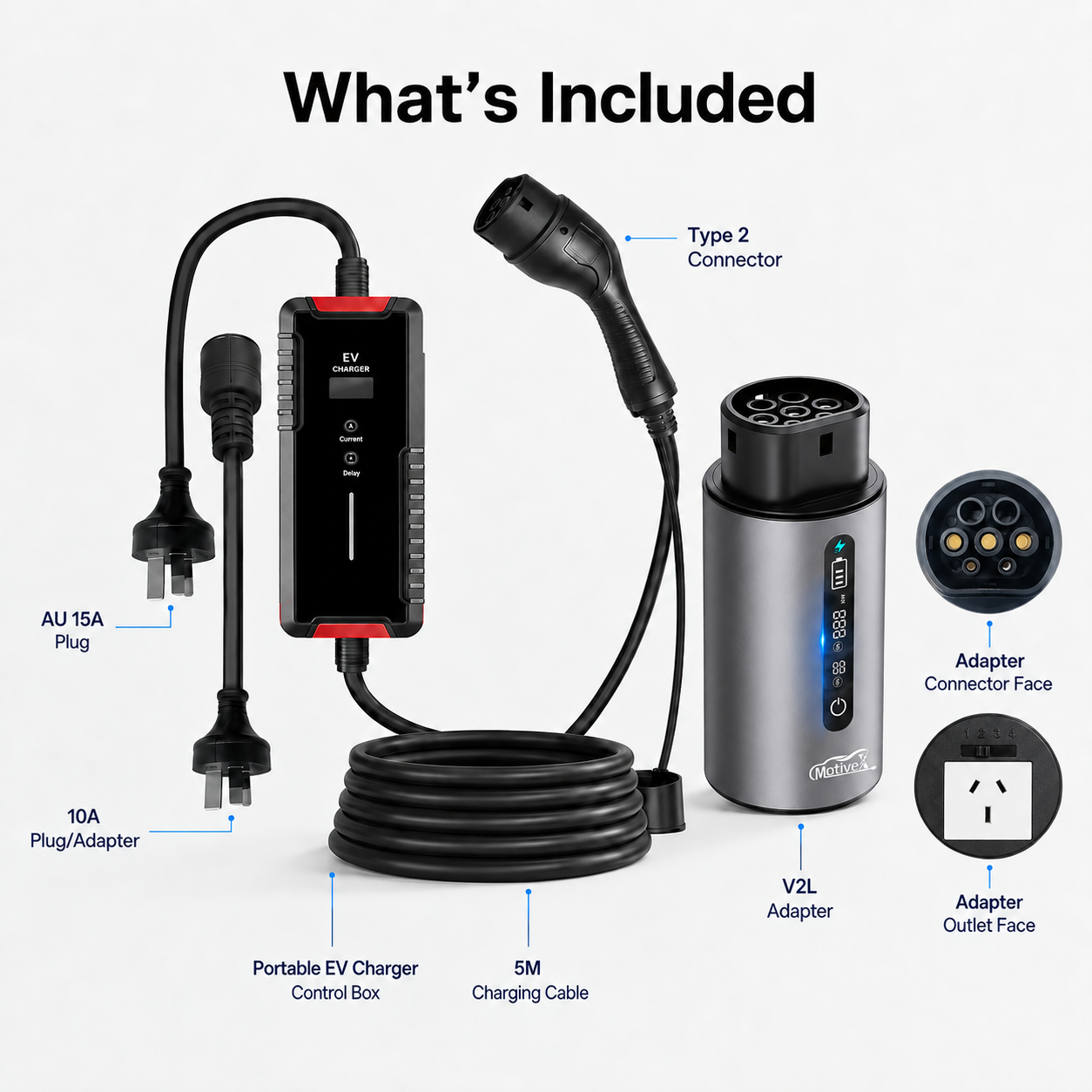

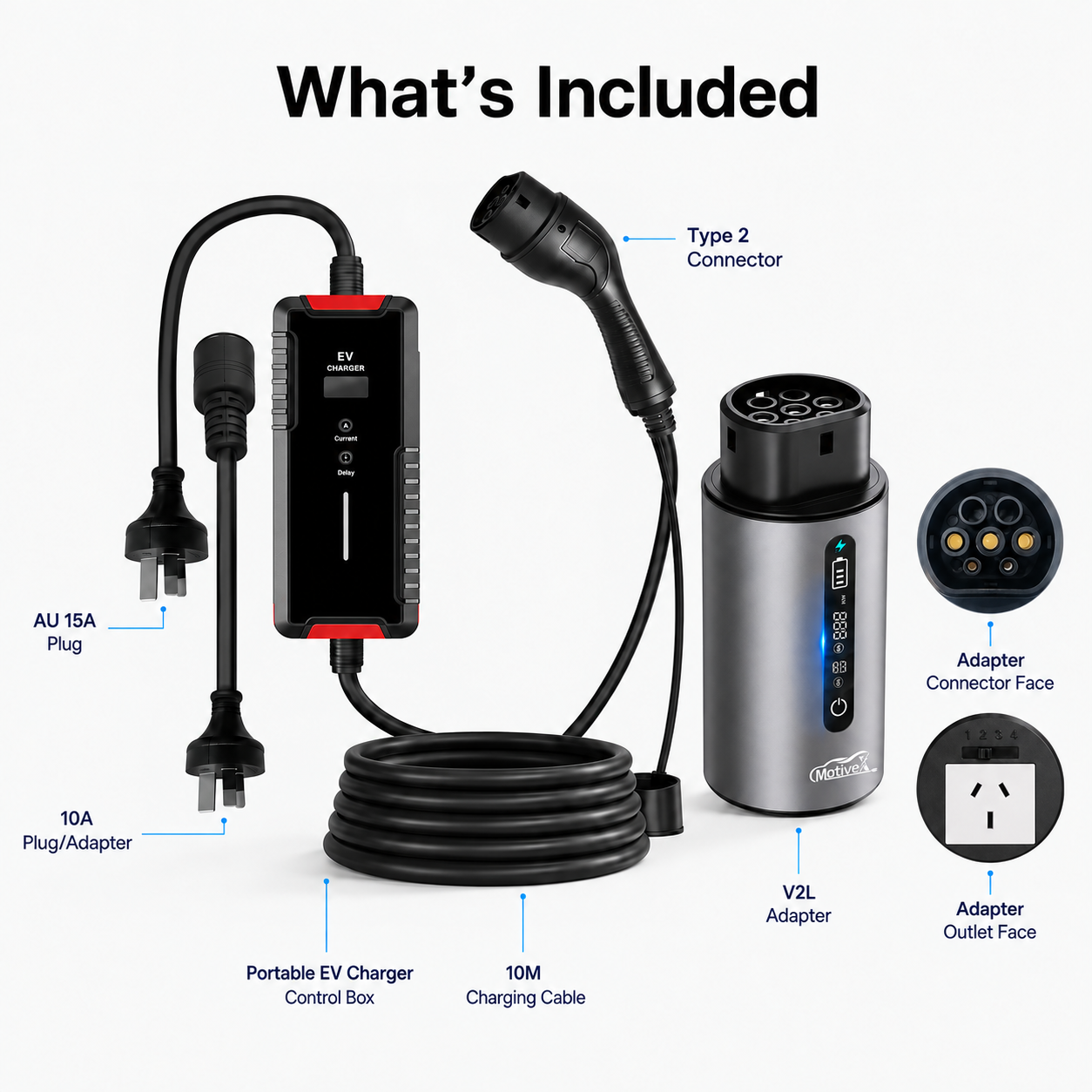

Parcel Content:

1 * Portable EV Charger
1 * Rubber Cover
1 * Charging Cable
1 * AU Conversion Cord （ Switching From 15A Plug To 10A Plug)
1 * Storage Bag
1 * Fasten Case

Best Service

No Matter Which City You Are In, We Will Provide Quality Service.

2-Year Warranty

MotiveX Covers A Period 24 Months From The Date Of Purchase

One-stop-shop For Electrical

Powering Your Needs, One Stop at a Time!

AU&NZ Wide Shipping

You Can Expect to Get The Goods After About 7-12 Days.

Secure Payment

On MotiveX Your Payment Infomation Is Processed Securely

Product details

MotiveX EV Chargers

Charge Smarter, Not Harder!

The Smart APP Remote Control

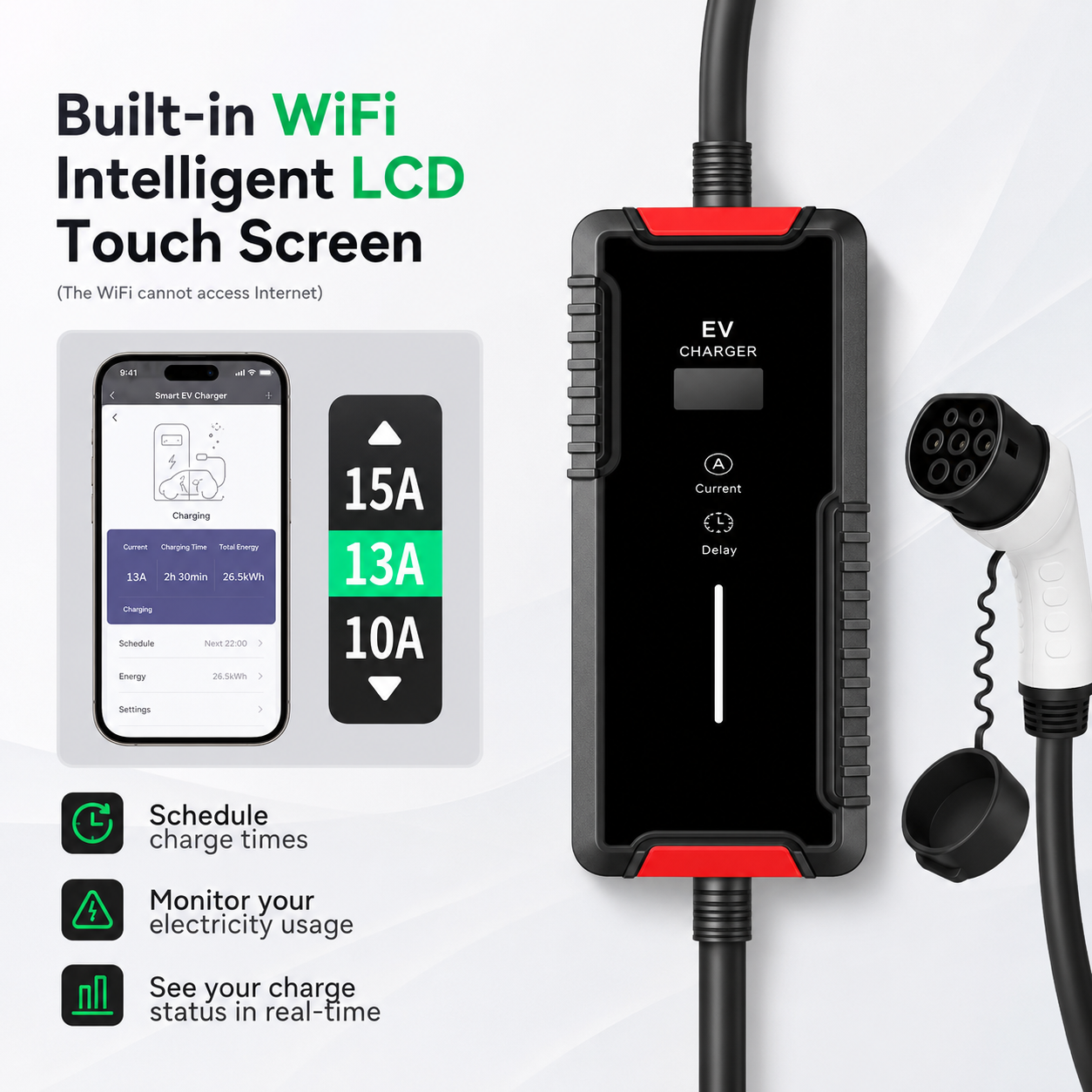

Our portable EV charger features a 2.4-inch LCD display for real-time monitoring and can be controlled remotely via The Smart Life App, using both WiFi and Bluetooth.

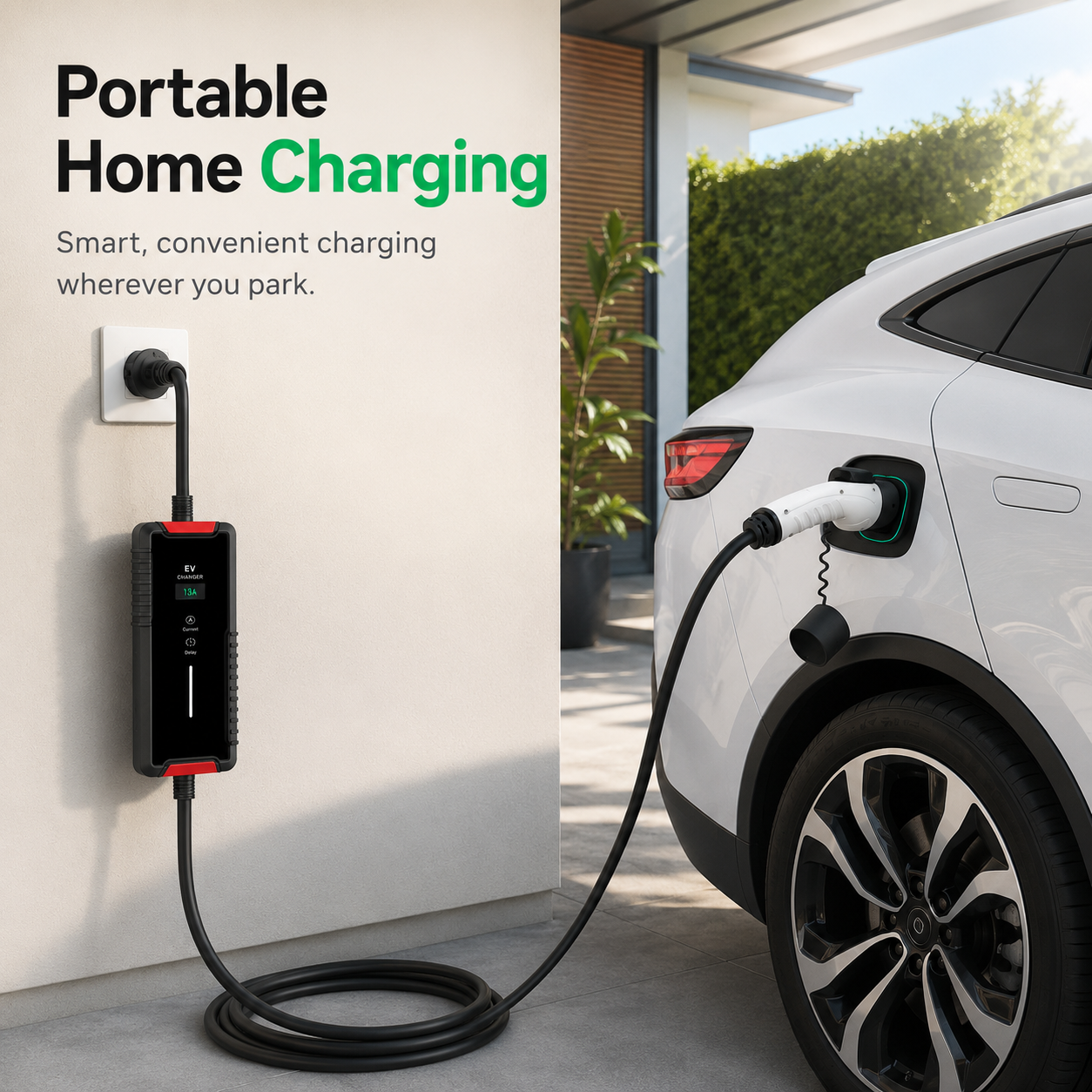

Stay Charged Anywhere!

MotiveX-Store portable EV charger offers rapid charging speeds with top-notch safety features, ensuring your vehicle charges quickly and securely wherever you are.

FAQs

Add a short description for this section

How to choose the right electric car charging cable?
  • First, determine whether the charging interface is Type 2 or Type 1, and then choose a right EV charger according to input voltage (single-phase 240V/three-phase 380V) and power supported by your car charger.
3.6kw vs 7kw vs 11kw vs 22kw ,which one is best for my car?
  • Determine what is maximum power, current, and voltage supported by your car and whether it supports 3-phase power. With the same number of power phases, choose a high power charging cable that is backward compatible with low power vehicles.
  • If your car supports 1-phase power, you can choose 3.5KW and 7KW.
  • if your car supports 3-phase power, you can choose 11KW and 22KW.
Schuko vs 3-pin CEE vs 5-pin CEE, What's the difference?which one is best for my car?
  • Schuko: single-phase, 230V, 16A, Maximum power 3.5KW
  • 3-pin CEE:single-phase, 230V, 16A/32A, Maximum power 7KW
  • 5-pin CEE: three-phase, 380v, 16A/32A, Maximum power 22KW
  • The charger will configure the plug according to power and cannot be modified at will. If corresponding charger is selected, corresponding socket needs to be installed.
How long does it take fully charge?
  • Charging time = car battery capacity / charging power.
    For example, car battery is 50kwh and charging power is 11KW. It can be fully charged in about 4.5H (4.5=50/11)
How long is your delivery time?
  • After confirming the order, MotiveX's delivery staff will ship the item within 48 hours, and the estimated arrival time is within 8-15 days.
What's the warranty period?
  • We provide a 2-year warranty, covering proper use and installation, excluding misuse or unauthorized modifications.
Is your charger compatible with all car brands, or can it only charge certain brands?
  • Yes, our chargers work with all car models.
Does your product have the certification required by the local markets?
  • Yes, our products are globally certified, including UL, CE, TUV, CSA, ETL, CCC, ensuring safe use.
