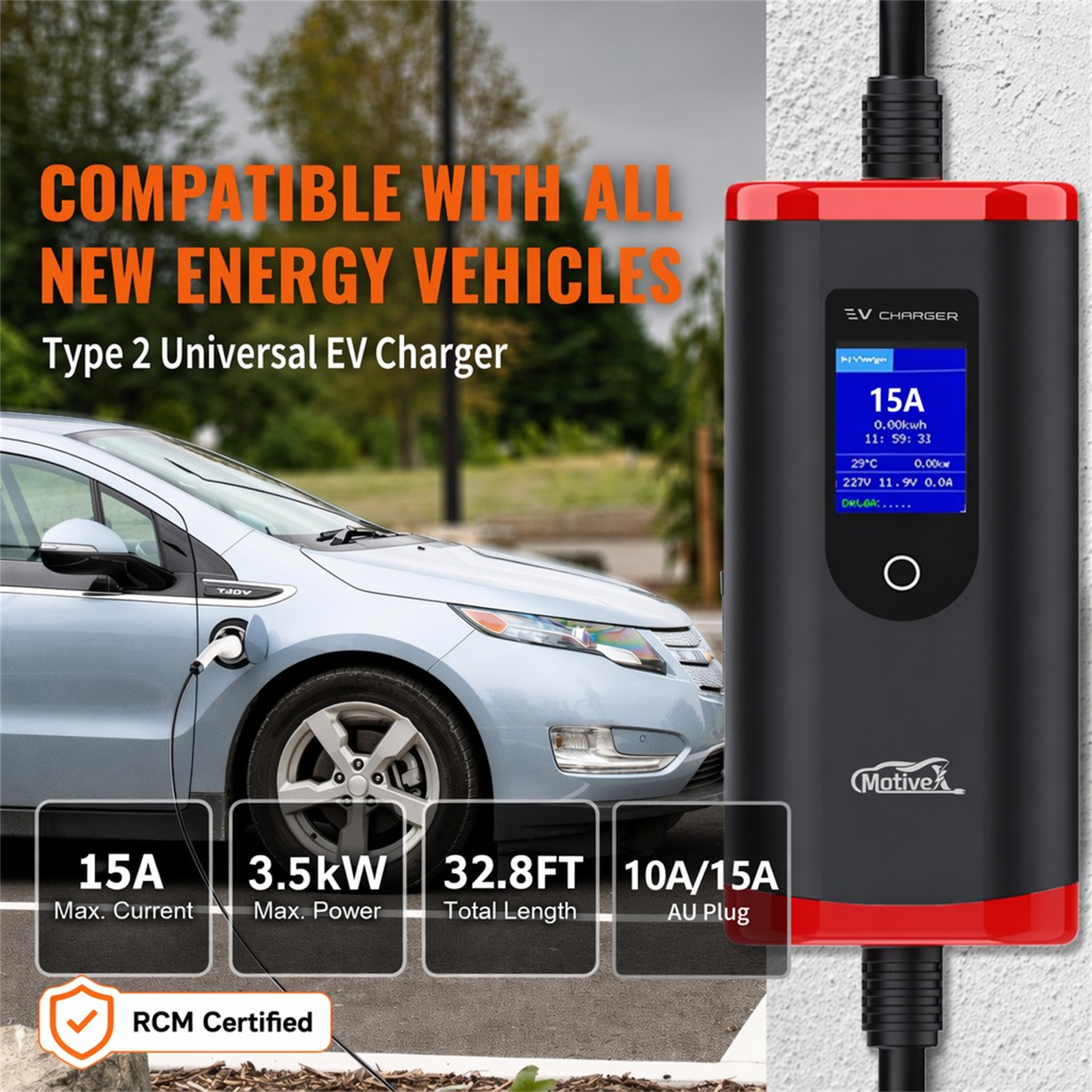

Type2 B2 Smart Home Portable EV Chargers Adjustable 6-15A 10M/5M

$288.79 AUD
Shipping calculated at checkout.
Model: Smart Premium Portable (15A Plug) — 5M(16.5ft)
6 in stock
  • Inc. GST 10%
  • 28 $AUD (Standard Shipping)
Model Number EV-B2-16AC-BK/WH5/10M(W)
Condition 100% Brand New
Brand Name MotiveX
Place Of Origin Australia
Protection Rank IP65/66
Connector Type IEC 62196 Type2
Amperage Adjustable 6A/8A/10A/13A/15A
Output Power 3.5 KW
Cable Length 10M (32.8ft) & 5M(16.5ft)
Operating Voltage AC 200-250V

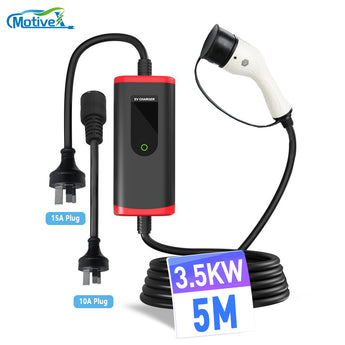

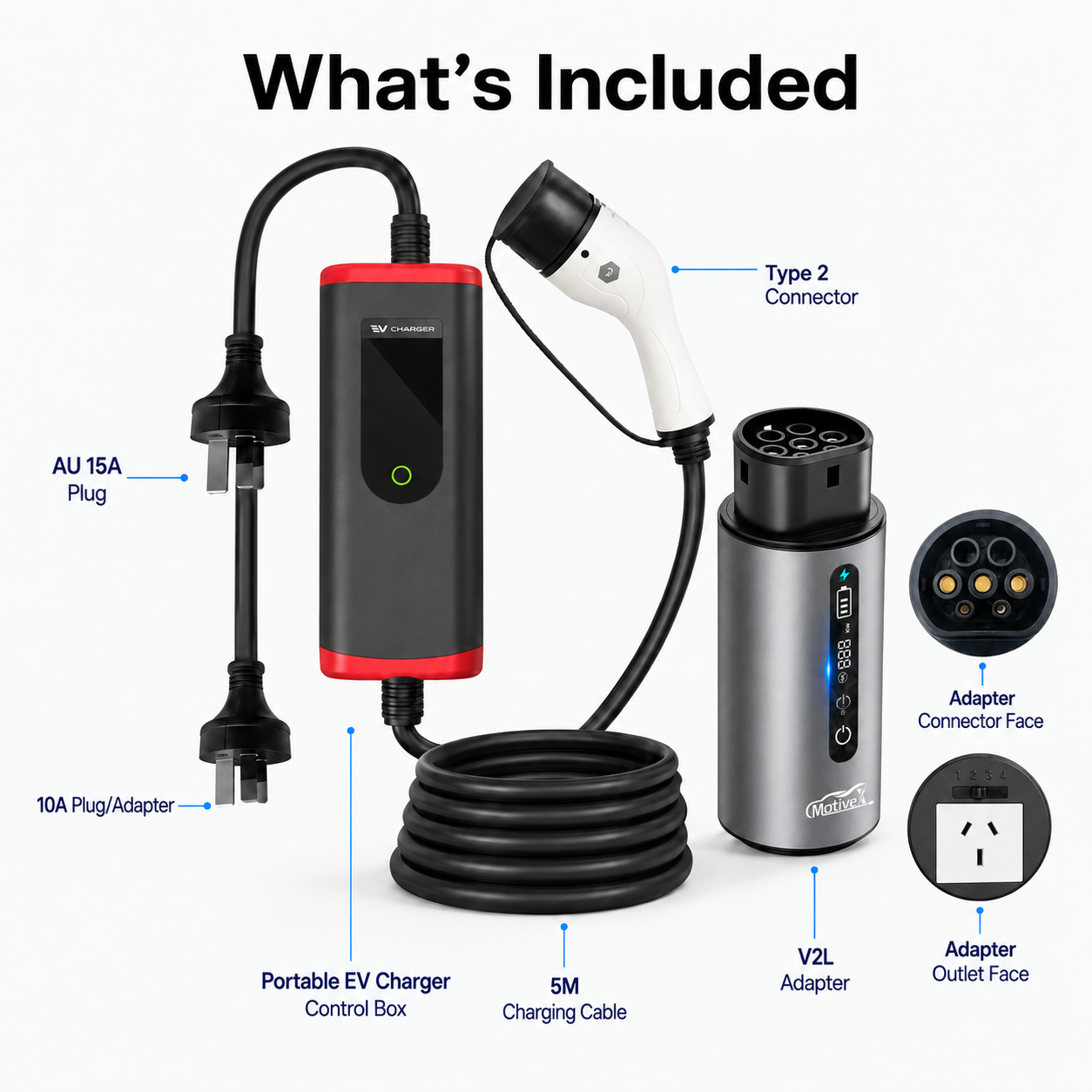

AC Input Plug  Includes AU15A Plug and 15A-to-10A conversion cord
LCD display 2.4 Inches LCD Screen
Charging Method Plug & Play
Communication Method WiFi & Bluetooth
Appearance Size L220*W100*H60mm
Operating Temperature -35℃ to +50℃
Operating Humidity 5% ~ 95%HR
Insulation Resistance ≥100MΩ
Packages Each in PE bag, then in shipping box. Protect the transportation and storage of products.
Certificate RCM,CE, UKCA, ROHS, ISO, TUV, CB, FCC
Warranty 2 Years
Leakage Protection CCID20, Leakage, The Relay Was Off
Ground Protection The Ground Wire Is Not Detected Or The Ground Wire Is Disconnected During Charging.
The Relay Is Disconnected.
Over Temperature Protection When the Temperature of The Main Board Reached 185℉, The Power was Reduced to
50%, and It was Turned Off After 194℉

Model: Smart Premium Portable (15A Plug) — 5M(16.5ft)
Product information
  • This charger allows to charge your EVs and PHEVs with Type 2 charging connector easily and conveniently.
  • 15A strong current with 3.5KW(max) high power allows quick and efficient charging, plug and play.
  • It is available to provide corresponding current to match with different EVs and PHEVs.
  • Support intelligent security lock function and smart temperature control.
  • The control box provides an 2.4" LCD screen & Indicator Light  to show parameters (R/G/B) , allowing you to understand the working status of the charger.
  • Our products have a matching APP—Smart Life APP, which can schedule charging, check charging status, disconnect power, etc.
  • Made of highly flame-retardant and high strength material, secure and durable.
  • RCD Protection:
  1. Type A(30mA AC)

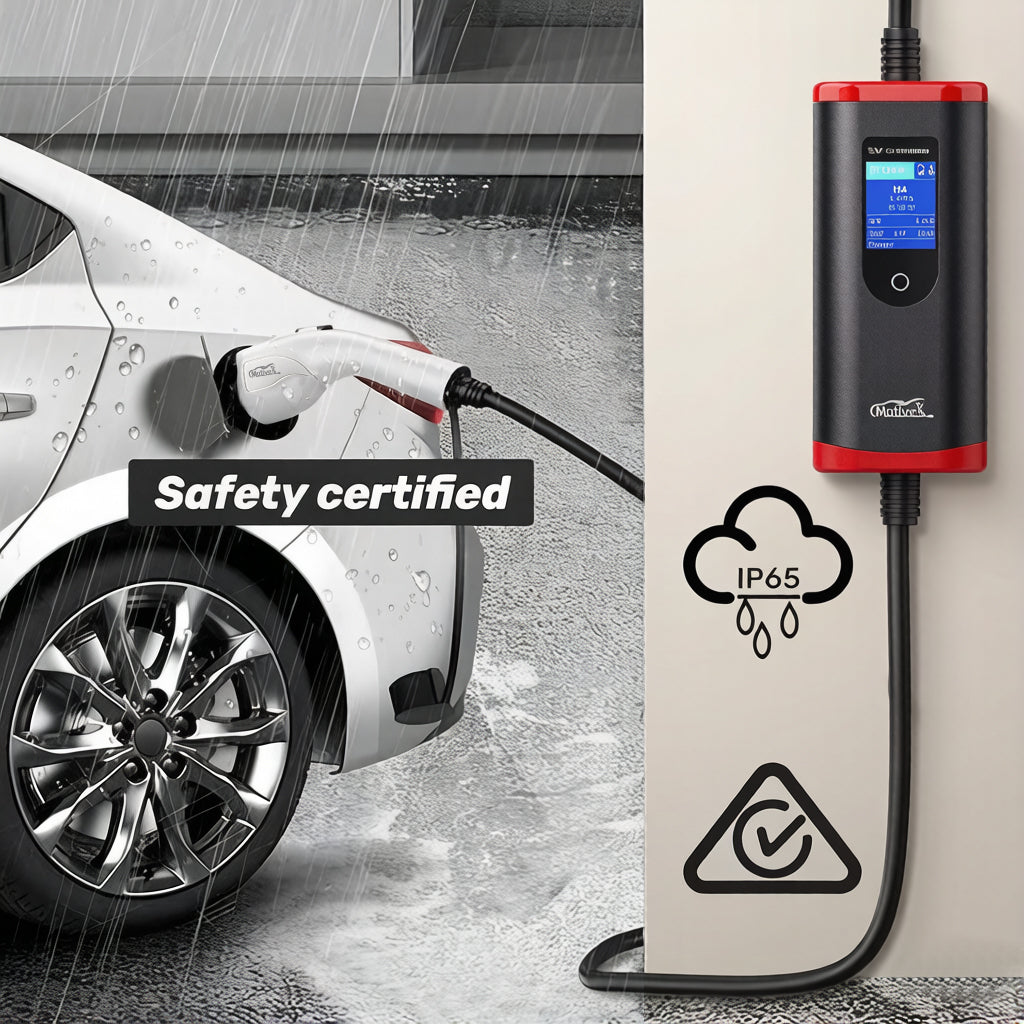

  2. IP65, Weather proof;
  3. Leakage current protection;
  4. Impact resistance;
  5. Over current protection;
  6. Ground protection;
  7. Surge protection;
  8. O/U voltage protection;
  9. O/U frequency protection;
  10. Over temp protection.

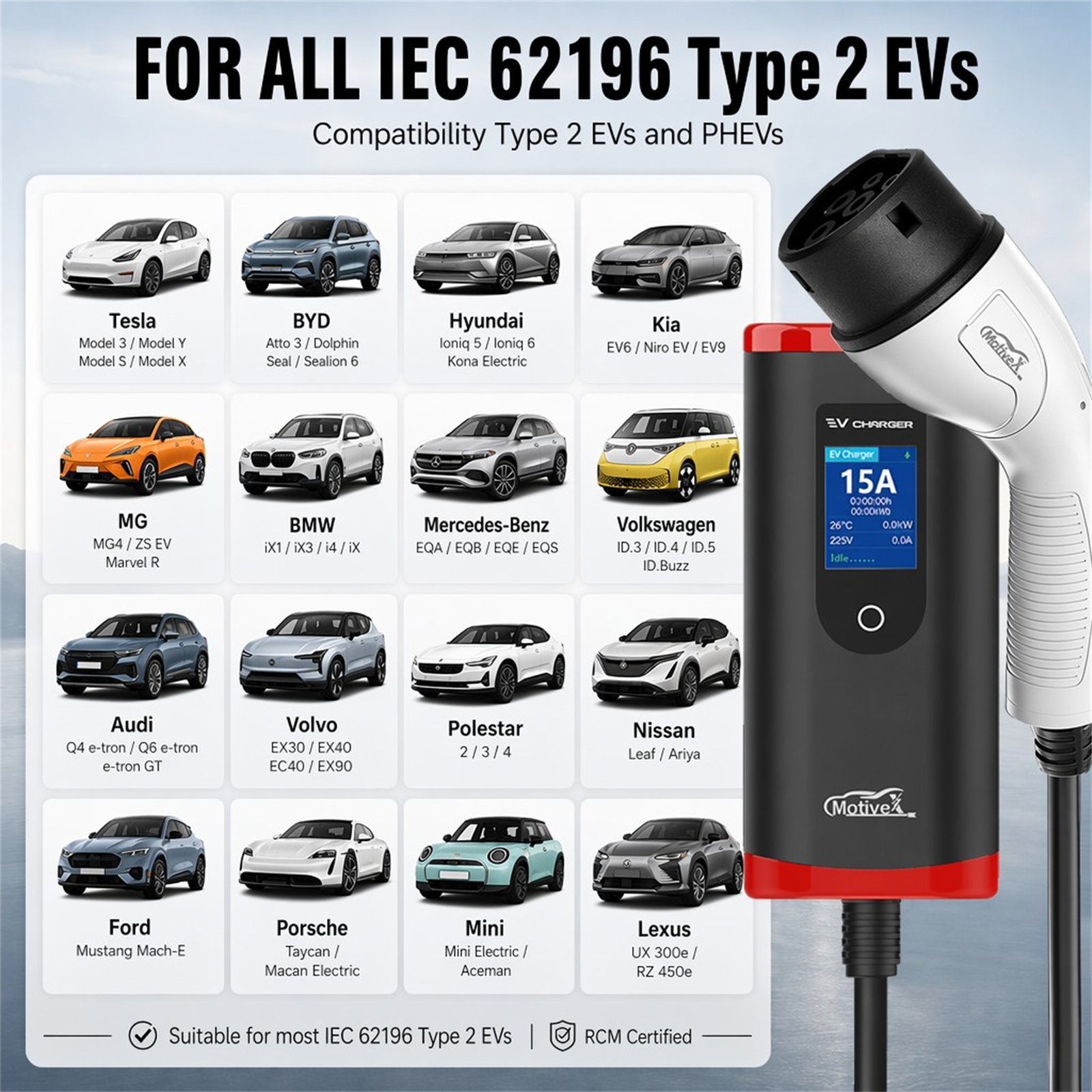

Compatible Models and Years:

       Universal for all Electric Vehicles (EVs) and Plug In Hybrid Electric Vehicles (PHEVs) that use a Type 2 charging connector.

EV Charger Care Guide

Good care helps protect charging performance and reduces preventable faults.

Before every charge

Check the plug, socket, cable and control box for cracks, burn marks, loose parts, water or dirt. Do not use the charger if anything looks damaged.

During charging

Keep the cable uncoiled where possible, avoid tight bends, and keep the control box away from standing water, heat sources and heavy objects. Do not cover the control box while charging.

Storage

After use, disconnect safely, let the cable cool if needed, wipe off dust or moisture, and store it in a dry place away from direct sunlight and sharp edges.

When to stop using it

Stop immediately if charging is unstable, the plug becomes unusually hot, you smell burning, or the cable/control box shows damage. Contact us with photos or video before using it again.

Delivery Information

We aim to make delivery expectations clear before you place your order.

Dispatch time

Orders are usually prepared and shipped within 48 hours after order confirmation, excluding weekends, public holidays and exceptional carrier delays.

Estimated delivery time

Estimated arrival is generally 7-12 business days. Remote areas may take longer. Tracking information will be provided when available.

Before signing or opening

Please check the parcel condition when it arrives. If packaging is badly damaged, take photos before opening and contact us promptly so we can help.

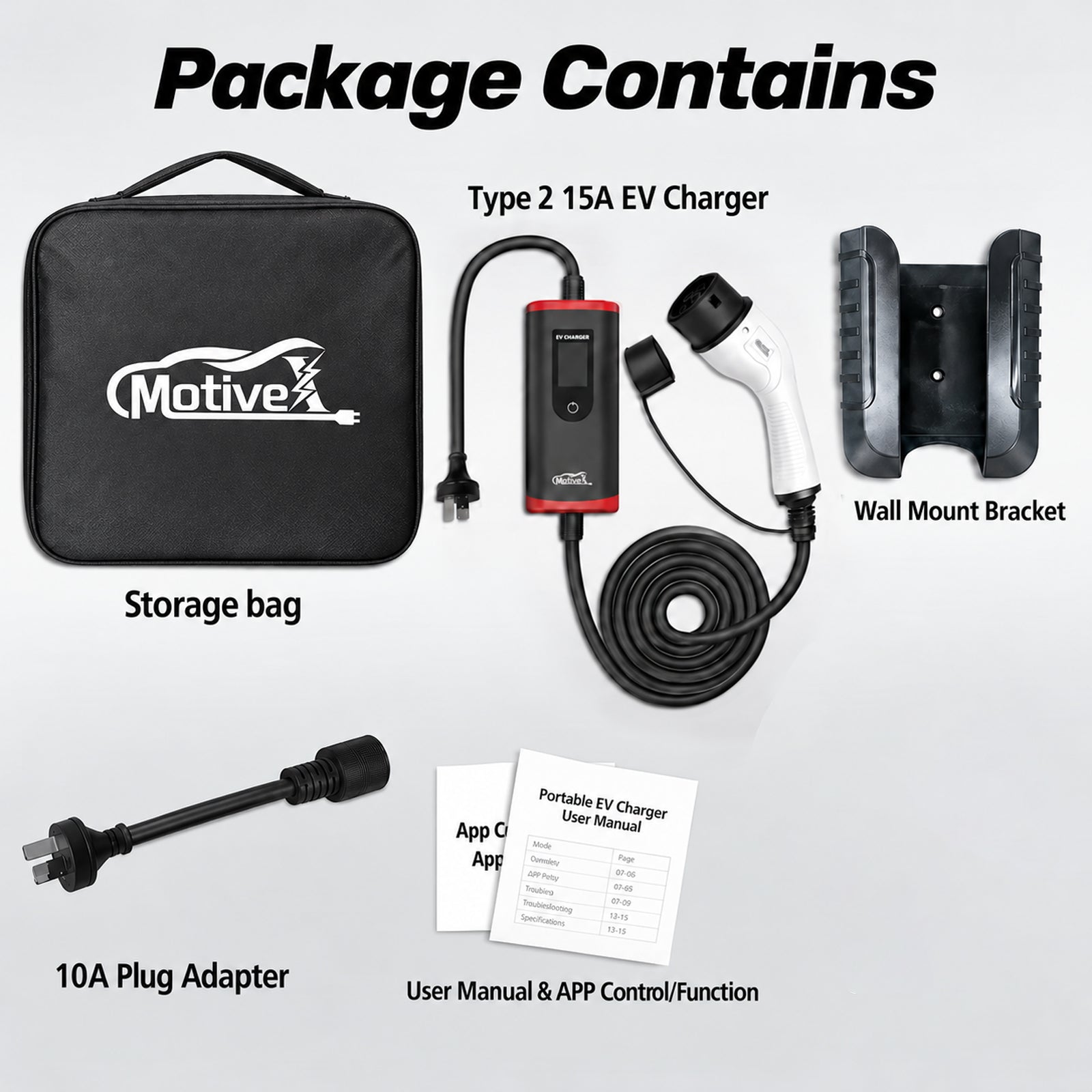

What is in the parcel

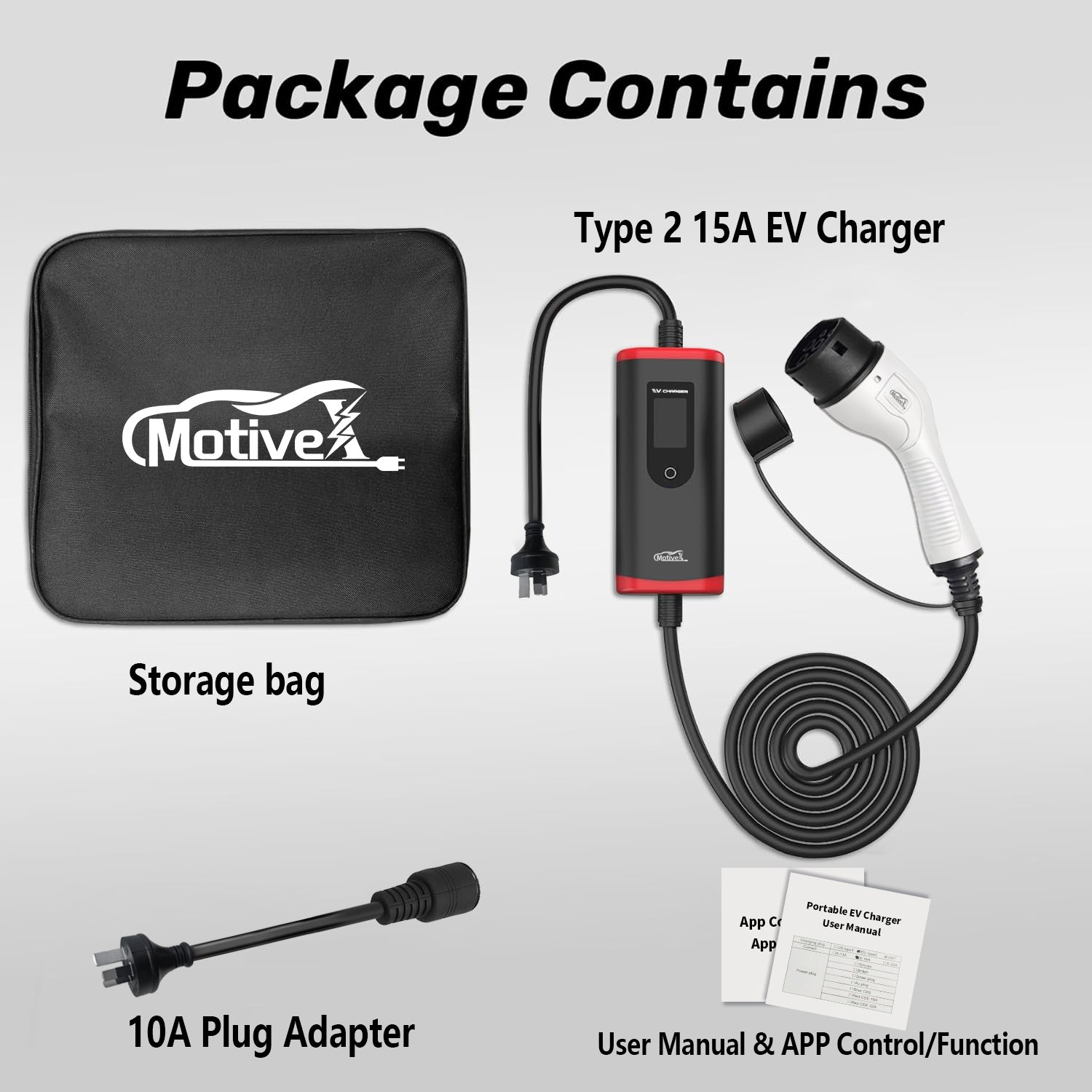

Parcel contents vary by product. Please check the specific product page for the included charger, cable, plug type and any accessories before ordering.

Best Service

No Matter Which City You Are In, We Will Provide Quality Service.

2-Year Warranty

MotiveX Covers A Period 24 Months From The Date Of Purchase

One-stop-shop For Electrical

Powering Your Needs, One Stop at a Time!

AU&NZ Wide Shipping

You Can Expect to Get The Goods After About 7-12 Days.

Secure Payment

On MotiveX Your Payment Infomation Is Processed Securely

Product details

MotiveX EV Chargers

Charge Smarter, Not Harder!

The Smart APP Remote Control

Our portable EV charger features a 2.4-inch LCD display for real-time monitoring and can be controlled remotely via The Smart Life App, using both WiFi and Bluetooth.

Stay Charged Anywhere!

MotiveX-Store portable EV charger offers rapid charging speeds with top-notch safety features, ensuring your vehicle charges quickly and securely wherever you are.

FAQs

Add a short description for this section

How to choose the right electric car charging cable?
  • First, determine whether the charging interface is Type 2 or Type 1, and then choose a right EV charger according to input voltage (single-phase 240V/three-phase 380V) and power supported by your car charger.
3.6kw vs 7kw vs 11kw vs 22kw ,which one is best for my car?
  • Determine what is maximum power, current, and voltage supported by your car and whether it supports 3-phase power. With the same number of power phases, choose a high power charging cable that is backward compatible with low power vehicles.
  • If your car supports 1-phase power, you can choose 3.5KW and 7KW.
  • if your car supports 3-phase power, you can choose 11KW and 22KW.
Schuko vs 3-pin CEE vs 5-pin CEE, What's the difference?which one is best for my car?
  • Schuko: single-phase, 230V, 16A, Maximum power 3.5KW
  • 3-pin CEE:single-phase, 230V, 16A/32A, Maximum power 7KW
  • 5-pin CEE: three-phase, 380v, 16A/32A, Maximum power 22KW
  • The charger will configure the plug according to power and cannot be modified at will. If corresponding charger is selected, corresponding socket needs to be installed.
How long does it take fully charge?
  • Charging time = car battery capacity / charging power.
    For example, car battery is 50kwh and charging power is 11KW. It can be fully charged in about 4.5H (4.5=50/11)
How long is your delivery time?
  • After confirming the order, MotiveX's delivery staff will ship the item within 48 hours, and the estimated arrival time is within 8-15 days.
What's the warranty period?
  • We provide a 2-year warranty, covering proper use and installation, excluding misuse or unauthorized modifications.
Is your charger compatible with all car brands, or can it only charge certain brands?
  • Yes, our chargers work with all car models.
Does your product have the certification required by the local markets?
  • Yes, our products are globally certified, including UL, CE, TUV, CSA, ETL, CCC, ensuring safe use.
