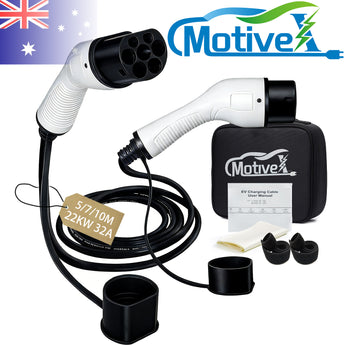

EV Charging Cable |Type 2 to Type 2|(3 Phase 32A 480V 22kW) 5 Meter
$191.88 AUD
/
Shipping calculated at checkout.
-
Inc. GST 10%
Couldn't load pickup availability
Product details
Key information about our products：
|
Model Number |
ST-E250-22KW |
|
Brand Name |
MotiveX |
|
Place Of Origin |
Australia |
|
Protection Rank |
IP55 |
|
Connector Standard |
Type 2 To Type 2 |
|
Cable Color |
Black/White |
|
Rated |
3 Phase |
|
Power |
32Amp 22kw |
|
Operating Temperature |
-30℃~50℃ |
|
Rated Voltage |
480V |
|
Packages |
Each in PE bag, then in shipping box. Protect the transportation and storage of products. |
|
Certificate |
CE, UKCA, ROHS, ISO, TUV, CB, FCC |
|
Warranty |
2 year |
EN Standard Strong Patience.
The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
TPU Cable.
Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.
Climate Friendly Stronger & Anti-aging.
The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
Arcing Design.
Unique self-cleaning’ design ensures that impurities on the surface of the pins can be removed during each plug-in process.
Ergonomic Design And Integrated Design.
Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.
K10 rated with an integrated design ensuring that you can charge safely in all weather conditions.
Better Conductivity.
Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
Temperature Monitoring.
Detects if the temperature is higher than the ‘set safe’ value, if this occurs, the current will automatically be cut off.
CAUTION:
1. Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -30°C to 50°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -30°C to 50°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
