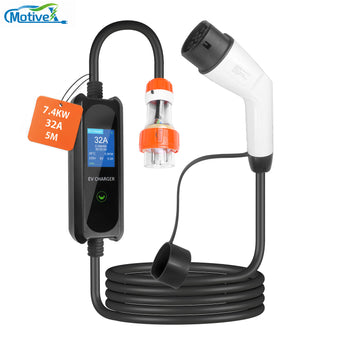

Smart 7.4kW Type 2 Portable EV Charger 32A | 3 pin | IEC62196 EVS | 5M
$294.99 AUD
/
Shipping calculated at checkout.
10 in stock
-
Inc. GST 10%
Couldn't load pickup availability
| ST-E210 | EVB07B-5M |
| Certificate | CE,CB UKCA |
| Brand Name | MotiveX |
| Place Of Origin | Australia |
| Protection Rank | IP65 |
| Connector Type | IEC 62196 Type2 |
| Amperage | Adjustable 6A~32A |
| Output Power | 7.4 KW |
| Cable Length | 5M(16.5ft) |
| Operating Voltage | AC 110V/230V |
| Max.output current | 32A for 1-Phase |
| LCD display | 2.4 Inches LCD Screen |
| Charging Method | Plug & Play |
| Communication Method | WiFi & Bluetooth |
| Control box | L200*W90*H50mm |
| Operating Temperature | -30℃ to +55℃ |
| Operating Humidity | 5% ~ 95%HR |
| Insulation Resistance | ≥100MΩ |
| Warranty | 2 Years |
| Leakage Protection | CCID20, Leakage, The Relay Was Off |
| Ground Protection | The Ground Wire Is Not Detected Or The Ground Wire Is Disconnected During Charging. The Relay Is Disconnected. |
| Over Temperature Protection | When the Temperature of The Main Board Reached 185℉, The Power was Reduced to 50%, and It was Turned Off After 194℉ |
